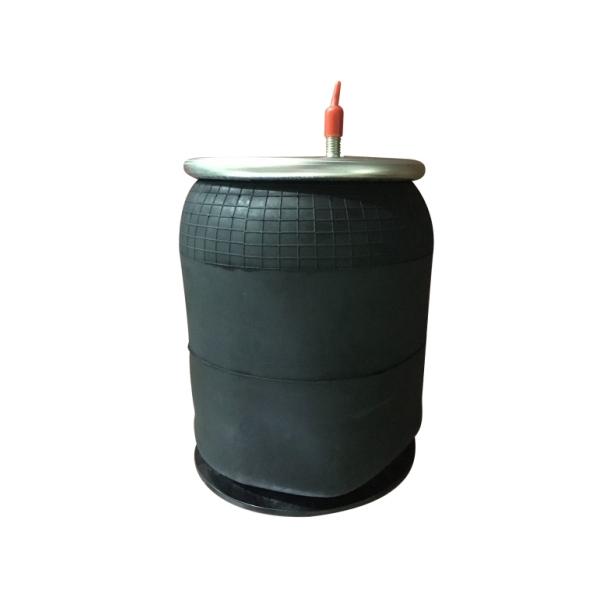

Fortpro Air Spring Replacement for Mack Trucks Models 9375, 1R12-404 | Fits F245581 | Heavy Duty Suspension Part for Smooth Ride & Load Support | Ideal for Mack CHU, CXU, GU, RD Trucks

Fortpro Air Springs F245581 is an air suspension solution with a strong design and made with high quality materials. They offer greater load capacity, flexibility, stability and driving comfort. Plus, they're easy to install and maintain, making them a reliable and long-lasting option for upgrading your commercial vehicle suspension.

Specifications:

• Brand: Fortpro
• Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: 9375, W01-358-9375, W01-358-9375
• Position: Primary Truck & Trailer Axle
• Air Spring Style: 1T Reversible Sleeve
• Piston Type: Composite
• Bead Plate Diameter Bottom: 10.00"
• Bead Plate Diameter Top: 9.00"
• Collapsed Height: 8.10"
• Max. Height: 22.00"
• Part Diameter: 10.12"
• Piston Height: 4.85"
• Stud Configuration - Bottom: 1
• Stud Configuration - Top: 2
• Application: Hendrickson, Mack
• VMRS: 016-008-000

CrossReference:

• Automann: AB1DK23M9375
• Contitech: 910175P451, 910185P451(BK)
• Dayton Parts Batco: 1R121076, 1R12404, 3529375, 50899002L
• Firestone: 9375, W013589375
• Goodyear: 1R12404, 1R12404, 1R12488, 1S12030, 1S12031
• Hendrickson: 50899001, 50899002
• Mack: 364QS27, 57QL414M
