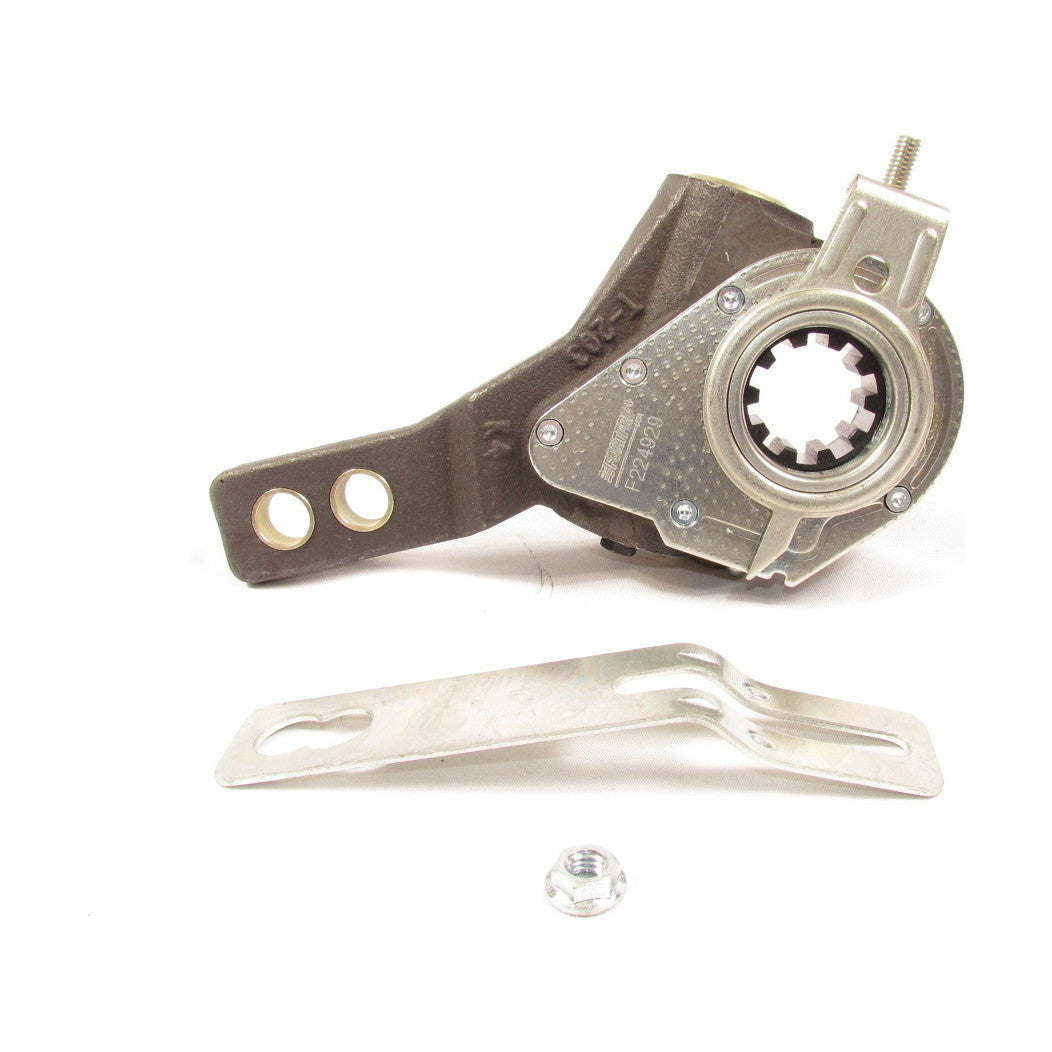

Fortpro Automatic Slack Adjuster 1.5" Diameter, 10 Teeth, 5.5"-6.5" Arm - Haldex Style Replacement for 400 10143 & F224929 - Heavy Duty Truck & Trailer Brake System Maintenance

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category: Slack Adjuster
• OEM Reference: 40010143
• Part Type: Automatic Slack Adjuster
• Style: Haldex
• Slack Spline Diameter: 1-1/2 in.
• Slack Spline Count: 10
• Arm Length 1: 6-1/2 in.
• Arm Length 2: 5-1/2 in.
• Arm Length 3: N/A
• Model: AA1
• Clevis Type: Unclevised
• Clevis Thread Diameter: N/A
• Maximum Torque Rating: Less than 15 foot pounds
• Arm Offset: No Offset
• Arm Bushing(s)Inside Diameter (ID): Arm Hole Diameter5/8 in.
• Inclination Angle (Body Angle): (-34 °)
• Maximum Operating Temperature: 158 °F (70 °C)
• Minimum Operating Temperature: (-40 °F) (-40 °C)
• Material: Alloy Steel
• Type of Operation: Tension Adjuster - Torque
• Chamber Sizes: T-30 Standard Stroke or T-16 / T-24 Long Stroke Chamber
• Grease Fitting Location: 180 º
• Anchor Bracket Style: Strap
• Application: For Standard, Drive Axle Application.Brake Size 16-1/2 in.

CrossReference:

• Automann: 1331031
• Bendix: 317166
• Dayton Parts: 5661
• Euclid: E6924B
• Haldex: 400-10143
• Meritor: R806022A, M807022
• Stemco: MK41100S
